Description

Technical Parameters

Why choose us?

We have rich service experience and research and development technology.

Stable supply chain

Having our own battery pack and inverter factories with more than 3GWh of Li-FePO4 battery packs and 100000 inverters capacity.

Local Services

Branch offices, technical centers and warehouses in main markets to cover the surrounding area of 200-300 kilometers.

Accept Customization

Supporting OEM and ODM for strategic customers, customers with the same idea, and customers who reach the MOQ.

Excellent After-sales Service

The service & technical team of more than 90 people provide timely assistance, product training and on-site technical support.

Strong R&D Team

The R&D team of more than 30 professionals, who have more than 10 years of R&D experience at top companies in the industry.

Competitive Payment Terms

Supporting a variety of payment methods, such as T/T, L/C, Paypal, Alipay and so on.

Technical Data

Model	CE4880-EU-180-H	CE48100-EU-200-H
AC Charge
Battery Type	Lithium-ion / Lead-acid / User Deﬁne
Max. AC Charge Current (A)	100
Charge Voltage Range (Vdc)	40~60
Short Circuit Protection	Circuit breaker and blown fuse
Solar Charge
Max. PV Open Circuit Voltage (Vdc)	500
MPPT Voltage Range (Vdc)	120~425
Number of PV MPPT Tracker	2
Max. PV Input Power (W)	5,500+5,500
Max. PV Input Current (A)	22+22
Max. PV Charge Current (A)	180	200
Max. Hybrid Charge Current (A)	180	200
Charge Short Circuit Protection	Blown fuse
Wiring Protection	Inverse wiring protection
AC Input
Rated Input Voltage (Vac)	230 (Single phase)
Input Voltage Range (Vac)	170~280
Frequency (Hz)	50/60
Frequency Range (Hz)	47±0.3~55±0.3 (50) / 57±0.3~65±0.3 (60)
Overload/Short Circuit Protection	Breaker
Efficiency	>95%
Conversion Time (bypass and inverter)	10ms (Typical value)
AC Reverse Protection	Yes
Max. Bypass Overload Current (A)	63
AC Output
Output Voltage Waveform	Pure sine wave
Rated Output Power (W)	8,000	10,000
Power Factor	1
Rated Output Voltage (Vac)	230 (Single phase)
Output Voltage Error	±5%
Output Frequency Range (Hz)	50±0.3 / 60±0.3
Max. Efficiency	>92%
Overload Protection	(102% < load <110%) ±10%: report error and turn off the output after5 minutes; (110% < load < 125%) ± 10%: report error and turn off the output after 10 seconds; Load >125% ±10%: report error and turn offthe output after 5 seconds;
Peak Power (VA)	16,000	20,000
Loaded Motor Capacity (HP)	5	10
Output Short Circuit Protection	Breaker
Bypass Breaker Speciﬁcations (A)	63
Rated Battery Input Voltage (Vdc)	48 (Minimum starting voltage 44)
Battery Voltage Range (Vdc)	40.0~60 ± 0.6 (Undervoltage alarm / shutdown voltage / overvoltage alarm / overvoltage recovery settable on LCD screen)
General
Certification	IEC62109, EN61000
Operation Temperature Range (°C)	-15~55
Storage Temperature Range (°C)	-25~60
Humidity Range	5%~95% (Conformal coating protection)
Noise (dB)	< 60
Heat Dissipation	Forced air cooling, variable speed of fan
Communication Interface	USB / RS485 / dry node control
Size (mm)	620L×445W×130D
Weight (kg)	27

Product Details

Different energy meets the vast majority of scenarios. We provide on-site installation and usage guidance services, making it easy for you to buy and use.

10kW 48V Pure Sine Wave European Standard Off Grid Inverter-2

10kW 48V Pure Sine Wave European Standard Off Grid Inverter-3

10kW 48V Pure Sine Wave European Standard Off Grid Inverter-4

Product Introduction

If you have any questions during the browsing process, please feel free to contact us and communicate with us at any time.

10kW 48V Pure Sine Wave European Standard Off Grid Inverter-5

Pure Sine Wave AC Output

The off grid inverters provide high quality pure sine wave AC power to ensure stable output power for various sensitive electronic appliances such as computers.

10kW 48V Pure Sine Wave European Standard Off Grid Inverter-6

Support Grid And PV Activated Lithium Batteries

The off grid inverters are able to activate and manage lithium batteries through the grid or photovoltaic power system, enabling flexible energy storage and power solutions.

Application Cases

We have served thousands of customers and have rich service experience.

10kW 48V Pure Sine Wave European Standard Off Grid Inverter-7

Lebanon Installation Case

15kW Solar Energy Storage System in Lebanon

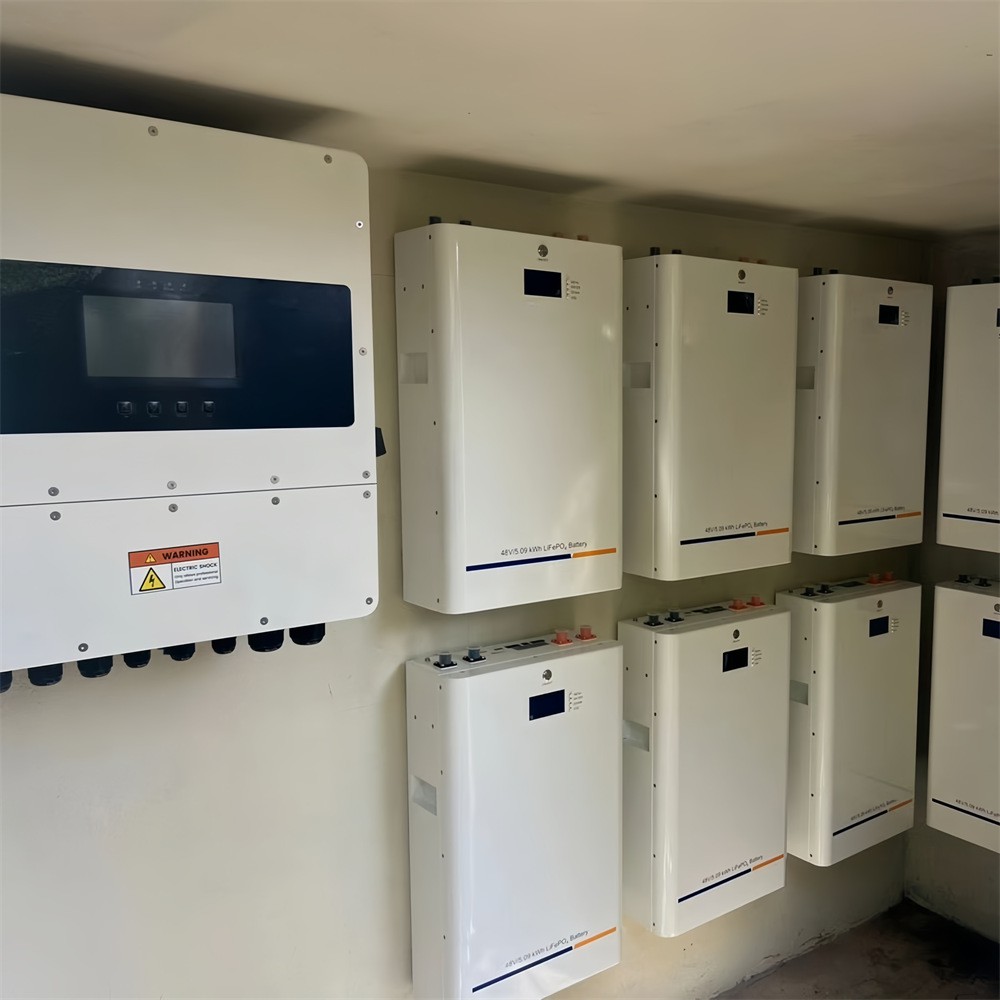

10kW 48V Pure Sine Wave European Standard Off Grid Inverter-8

South Africa Installation Case

12kW Solar Energy Storage System in South Africa

FAQ - Most frequent questions and answers

Q: Is your hybrid inverter suitable for most batteries on the market? Has it been tested?

A: Yes, ZDX inverter is compatible with a wide range of batteries available on the market. We have conducted extensive testing to ensure its compatibility and performance. We have a list of all the suitable batteries, please refer to our documentation.

Q: Are you a factory or a trading company?

A: ZDX is a factory close to Shanghai port, which is very convenient for loading and shipping, and saves a lot of transportation cost. We have a R&D and engineering team of more than 30 people for energy storage systems and solar inverter technology. Now we have over 3GWh of Li-FePO4 battery packs and 100000 inverters capacity.

Q: What's the payment term?

A: ZDX supports a variety of payment methods, such as T/T, L/C, paypal, alipay and others. If we enter into strategic cooperation, we can communicate with you about payment methods such as DP.

Q: What is your sample policy?

A: ZDX welcomes you to test our quality by sample. Samples will be prepared and sent out within 7 working days after the specification is confirmed.
