Description

Technical Parameters

Why Choose Us?

We have rich service experience and research and development technology.

Stable supply chain

Having our own battery pack and inverter factories with more than 3GWh of Li-FePO4 battery packs and 100000 inverters capacity.

Local Services

Branch offices, technical centers and warehouses in main markets to cover the surrounding area of 200-300 kilometers.

Accept Customization

Supporting OEM and ODM for strategic customers, customers with the same idea, and customers who reach the MOQ.

Excellent After-sales Service

The service & technical team of more than 90 people provide timely assistance, product training and on-site technical support.

Strong R&D Team

The R&D team of more than 30 professionals, who have more than 10 years of R&D experience at top companies in the industry.

Competitive Payment Terms

Supporting a variety of payment methods, such as T/T, L/C, PayPal, Alipay and so on.

Technical Data

Model	PHO2.5-W
Nominal Energy (Wh)	2 560
Nominal Capacity (Ah)	100
Nominal Voltage (V)	25.6
Operation Voltage Range (V)	20~29.2
Recommend Charge Current (A)	50
Max. Continuous Charge Current (A)	50
Recommend Discharge Current (A)	50
Max. Continuous Discharge Current (A)	100
Max. Parallel Quantities (pcs)	15
Operation Temperature	Charge Temperature: 0~55°C Discharge Temperature: -20~55°C
Operation Humidity	20~80% RH (No condensing)
Protection Degree	IP21
Dimension (mm)	310Wx162Dx500H (Without floor mount foot)
Net Weight (kg)	28
Installation	Wall mounted, floor mounted
Certification	IEC61000, IEC62619, UN38.3
Communication	CAN, RS485
Cycle Life	>6000 Cycles (25°C, 0.5C/0.5C)

Product Details

Different energy meets the vast majority of scenarios. We provide on-site installation and usage guidance services, making it easy for you to buy and use.

ZDX 25kWh Wall Mounted Home Battery Pack-Pho25-W-7

ZDX 25kWh Wall Mounted Home Battery Pack-Pho25-W-8

ZDX 25kWh Wall Mounted Home Battery Pack-Pho25-W-9

Product Introduction

If you have any questions during the browsing process, please feel free to contact us and communicate with us at any time.

ZDX 25kWh Wall Mounted Home Battery Pack-Pho25-W-10

Support to 15pcs Battery in Parallel

ZDX battery pack supports parallel connection of up to 15 batteries, allowing you to expand your battery capacity and increase power output according to your energy needs.

ZDX 25kWh Wall Mounted Home Battery Pack-Pho25-W-11

High Inverter Compatibity

ZDX home battery pack support high compatibility with a wide range of inverters, ensuring seamless integration into your existing solar power system or home energy setup.

Application Cases

We have served thousands of customers and have rich service experience.

ZDX 25kWh Wall Mounted Home Battery Pack-Pho25-W-12

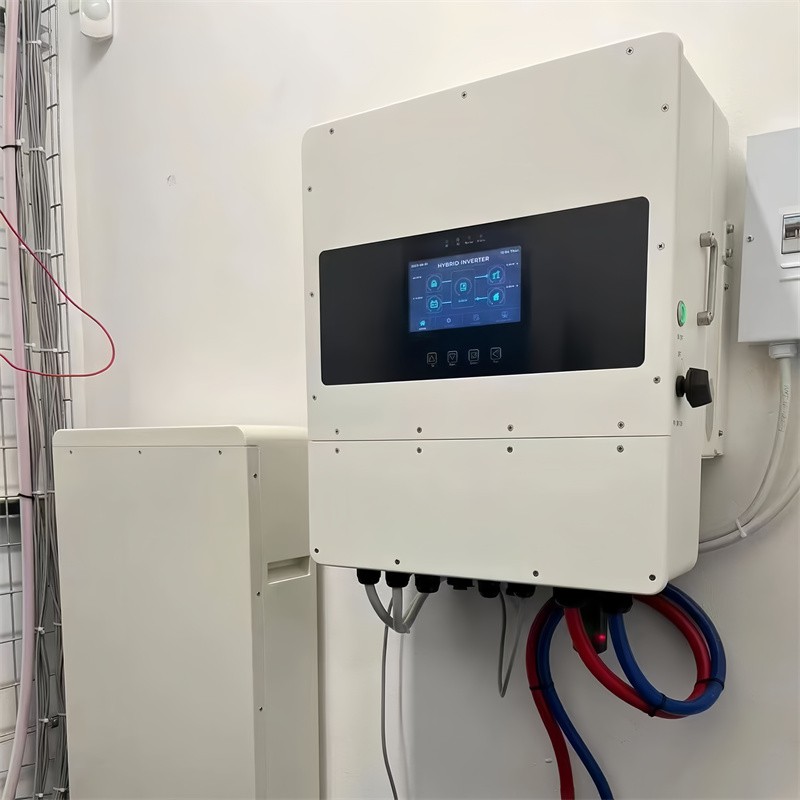

South Africa Installation Case

12kW Solar Energy Storage System in South Africa

ZDX 25kWh Wall Mounted Home Battery Pack-Pho25-W-13

Lebanon Installation Case

24kW Solar Energy Storage System in Lebanon

FAQ - Most frequent questions and answers

Q: What's the payment term?

A: ZDX supports a variety of payment methods, such as T/T, L/C, PayPal, Alipay and others. If we enter into strategic cooperation, we can communicate with you about payment methods such as DP.

Q: Are you a factory or a trading company?

A: ZDX is a factory close to Shanghai port, which is very convenient for loading and shipping, and saves a lot of transportation cost. We have a R&D and engineering team of more than 30 people for energy storage systems and solar inverter technology. Now we have over 3GWh of Li-FePO4 battery packs and 100000 inverters capacity.

Q: Do you produce the battery cells or just assemble them in your production line?

A: We purchase Haichen cells which is the Top brand in China, and assemble them in our workshop.

Q: What is your sample policy?

A: ZDX welcomes you to test our quality by sample. Samples will be prepared and sent out within 7 working days after the specification is confirmed.
