Product Introduction
IP67 Protection Degree

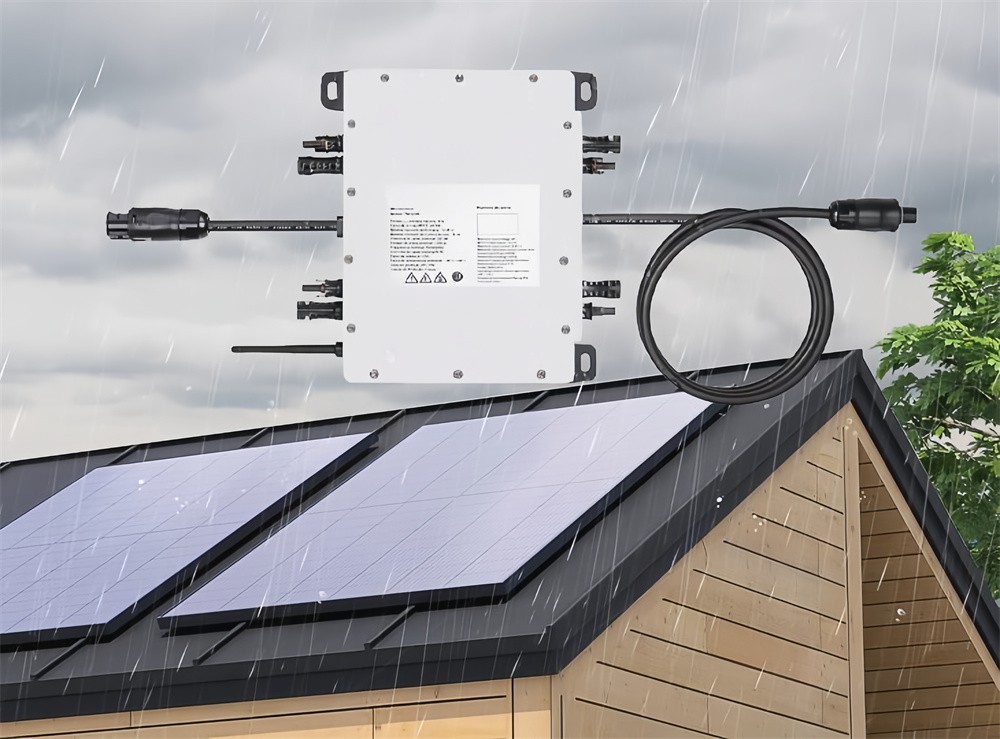

ZDX microinverter is designed with an IP67 protection degree, ensuring excellent resistance to dust and water. It is well-suited for outdoor installations, providing reliable performance even in challenging environments.
Individual MPPT Tracking
Each microinverter is equipped with independent Maximum Power Point Tracking (MPPT) function that tracks and optimizes the output of the solar panels in real time to maximize power generation efficiency.
Technical Data
|
Model |
Ant-2000G1-US |
Ant-2000G1-EU |
|
Input (DC) |
||
|
Recommended Input Power (Wp) |
280 to 550W+ (4 Pieces) |
|
|
Max. Input DC Voltage (Vdc) |
60 |
|
|
MPPT Voltage Range (Vdc) |
25~55 |
|
|
Start-up Voltage (Vdc) |
20 |
|
|
Max. Input Current (A) |
13.5×4 |
|
|
Max. DC Short Circuit Current (A) |
16.5×4 |
|
|
Output (AC) |
||
|
Rated Output Power (W) |
2000 |
|
|
Rated Output Current (A) |
9.1 |
|
|
Nominal Grid Voltage (V) |
220 |
230 |
|
Grid Voltage Range (V) |
184~253 |
|
|
Nominal Frequency (Hz) |
60 |
50 |
|
Frequency Range (Hz) |
55~65 |
45~55 |
|
Power Factor |
0.99 |
|
|
Maximum Units per Branch |
3 |
|
|
Efficiency |
||
|
CEC Weighted Efficiency |
95.5% |
|
|
Peak Inverter Efficiency |
96.0% |
|
|
MPPT Track Efficiency |
>99% |
|
|
Night Time Power Consumption (W) |
<50 |
|
|
Mechanical Data |
||
|
Operation Temperature Range (°C) |
-40~65 |
|
|
Dimension (mm) |
300W×280H×50D (Without mounting bracket and cable) |
|
|
Weight (kg) |
4.5 |
|
|
Cooling |
Natural cooling |
|
|
Noise (dB) |
<15 |
|
|
Protection Degree |
IP67 |
|
|
General |
||
|
Display |
LED, APP |
|
|
Communication |
Built-in Wifi |
|
|
Compliance |
IEC 62109, IEC 61000, VDE4105 |
|
