Description

Technical Parameters

Why Choose Us?

We have rich service experience and research and development technology.

Stable supply chain

Having our own battery pack and inverter factories with more than 3GWh of Li-FePO4 battery packs and 100000 inverters capacity.

Local Services

Branch offices, technical centers and warehouses in main markets to cover the surrounding area of 200-300 kilometers.

Accept Customization

Supporting OEM and ODM for strategic customers, customers with the same idea, and customers who reach the MOQ.

Excellent After-sales Service

The service & technical team of more than 90 people provide timely assistance, product training and on-site technical support.

Strong R&D Team

The R&D team of more than 30 professionals, who have more than 10 years of R&D experience at top companies in the industry.

Competitive Payment Terms

Supporting a variety of payment methods, such as T/T, L/C, PayPal, Alipay and so on.

Technical Data

Model	Link5-L	Link10-L	Link15-L	Link20-L
Nominal Energy (Wh)	5 120	10 240	15 360	20,480
Usable Energy (Wh)	4 600	9,200	13,800	18,400
Nominal Capacity (Ah)	100	200	300	400
Nominal Voltage (V)	51.2
Operation Voltage Range (V)	40~58.4
Standard Charge Current (A)	50	100	150	200
Standard Discharge Current (A)	50	100	150	200
Max. Charge Current (A)	50	100	150	200
Max. Discharge Current (A)	50	100	150	200
Max. Parallel Quantities	4 pcs Link5-L modules
Operation Temperature	Charge Temperature: 0°C~55°C Discharge Temperature: -20°C~55°C
Working Humidity	20~95% RH (No condensing)
Protection Degree	IP65
Dimension (mm)	665Wx530Dx355H	665Wx530Dx535H	665Wx530Dx715H	665Wx530Dx895H
Net Weight (kg)	84	142	200	258
Installation	Floor mounted
Certification	CE, UN38.3, IEC62619
Communication	CAN, RS485
Lifetime	6, 000 Cycle s@80% DOD

Product Details

Different energy meets the vast majority of scenarios. We provide on-site installation and usage guidance services, making it easy for you to buy and use.

ZDX 5-20kWh Stacked Home Battery Pack-LINK5-20-L-7

ZDX 5-20kWh Stacked Home Battery Pack-LINK5-20-L-8

ZDX 5-20kWh Stacked Home Battery Pack-LINK5-20-L-9

Product Introduction

If you have any questions during the browsing process, please feel free to contact us and communicate with us at any time.

ZDX 5-20kWh Stacked Home Battery Pack-LINK5-20-L-10

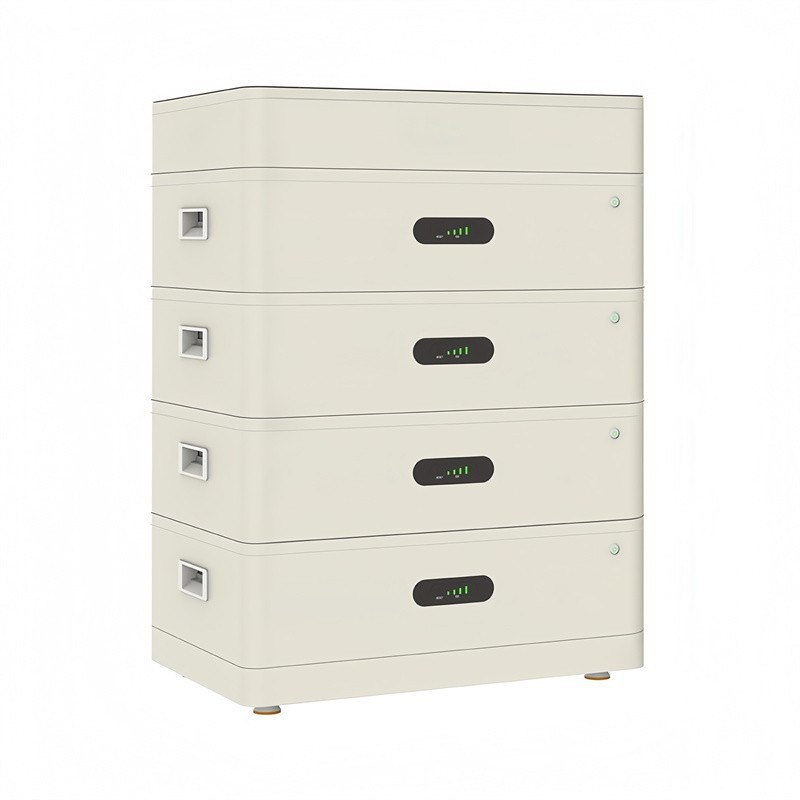

Flexible Modular Design

ZDX Link Series home battery pack have a flexible modular design that allows them to be easily scaled up or down depending on demand. Battery modules are available from a minimum of 5kWh to a maximum of 20kWh, with easy installation, simple connectors and high outdoor compatibility.

ZDX 5-20kWh Stacked Home Battery Pack-LINK5-20-L-11

IP65 Protection Degree

ZDX battery pack is designed with an IP65 protection degree, ensuring excellent resistance to dust and water. It is well-suited for both indoor and outdoor installations, providing reliable performance even in challenging environments.

Application Cases

We have served thousands of customers and have rich service experience.

ZDX 5-20kWh Stacked Home Battery Pack-LINK5-20-L-12

South Africa Installation Case

12kW Solar Energy Storage System in South Africa

ZDX 5-20kWh Stacked Home Battery Pack-LINK5-20-L-13

Lebanon Installation Case

24kW Solar Energy Storage System in Lebanon

FAQ - Most frequent questions and answers

Q: What's the payment term?

A: ZDX supports a variety of payment methods, such as T/T, L/C, PayPal, Alipay and others. If we enter into strategic cooperation, we can communicate with you about payment methods such as DP.

Q: Are you a factory or a trading company?

A: ZDX is a factory close to Shanghai port, which is very convenient for loading and shipping, and saves a lot of transportation cost. We have a R&D and engineering team of more than 30 people for energy storage systems and solar inverter technology. Now we have over 3GWh of Li-FePO4 battery packs and 100000 inverters capacity.

Q: Do you produce the battery cells or just assemble them in your production line?

A: We purchase Haichen cells which is the Top brand in China, and assemble them in our workshop.

Q: What is your sample policy?

A: ZDX welcomes you to test our quality by sample. Samples will be prepared and sent out within 7 working days after the specification is confirmed.
