Product Introduction

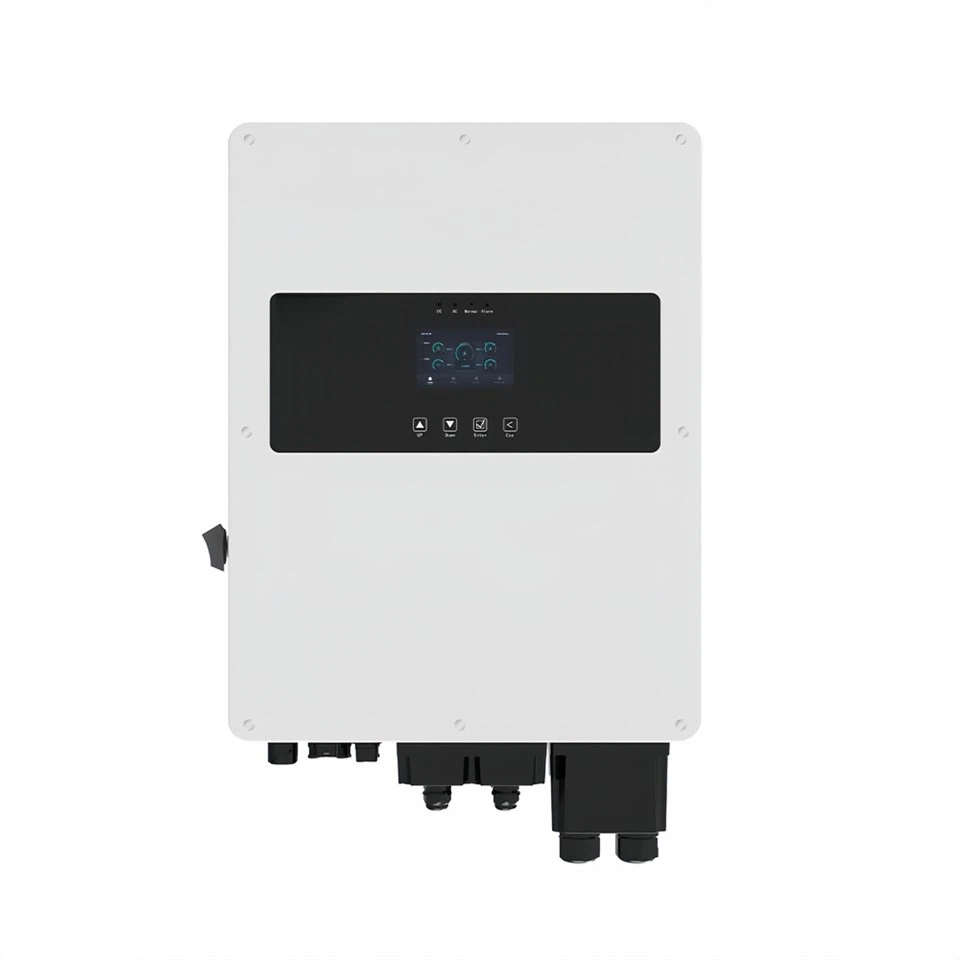

5-14kW Plug-and-play Three Phase Low Voltage Hybrid InverterG2-11

100% Unbalanced Output

Solar hybrid inverter supports 100% unbalanced output, enabling efficient power distribution across all phases. Each phase can deliver a maximum output of up to 5kW, providing flexibility and optimal performance.

5-14kW Plug-and-play Three Phase Low Voltage Hybrid InverterG2-12

Independent AC Input Port for Diesel Generator

Solar hybrid inverter has an independent AC input port specifically designed for connection to a diesel generator. This allows seamless integration of backup power from the generator when needed.

Technical Data

Model	Mars-5G2-LE	Mars-6G2-LE	Mars-8G2-LE	Mars-10G2-LE	Mars-12G2-LE	Mars-14G2-LE
Battery Input
Battery Type	Lead-acid or Li-ion
Battery Voltage Range (V)	40-60
Max. Charge Current (A)	120	130	200	220	250	280
Max. Discharge Current (A)	120	130	200	220	250	280
Charging Curve	3 Stages / Equalization
External Temperature Sensor	Optional
Charging Strategy for Li-Ion Battery	Self-Adaption to BMS
PV String Input
Max. DC Input Power (W)	7,500	9,000	12,000	15,000	18,000	20,000
PV Input Voltage (V)	650 (160~800)
MPPT Range (V)	200~700
Full Load DC Voltage Range (V)	260~650
Start-up Voltage (V)	160
PV Input Current (A)	17+17	17+17	17+17	26+17	26+17	26+17
Max. PV Isc (A)	20+20	20+20	20+20	34+20	34+20	34+20
No. of MPPT Trackers	2
No. of Strings per MPPT Trackers	1+1	1+1	1+1	2+1	2+1	2+1
AC Output
Rated AC Output and UPS Power (W)	5,000	6,000	8,000	10,000	12,000	14,000
Max. AC Output Power (W)	6,000	7,200	9,600	12,000	13,200	15,400
Peak Power(off grid)	2 times of rated power, 10s				1.8 times of rated power, 10s
AC Output Rated Current (A)	7.3	8.7	11.6	14.5	17.4	20.3
Max. AC Current (A)	10.8	13	17.4	21.7	26	26
Max. Continuous AC Passthrough (A)	26	26	26	26	26	26
Power Factor	0.8 leading to 0.8 lagging
Output Frequency and Voltage (V)	50/60Hz, 380/400Vac (Triple phase)
Grid Type	Three phase
Current Harmonic Distortion	THD<3% (Linear load<1.5%)
Efﬁciency
Max. Efﬁciency	97.90%
Euro Efﬁciency	97.00%
MPPT Efﬁciency	99.90%
Protection
Integrated	PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection
PV ARC Fault Detection	Optional
Output Over Voltage Protection	DC Type II / AC Type III
Certiﬁcations and Standards
Grid Regulation	CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11
Safety Regulation	IEC/EN62109-1, IEC/EN62109-2
EMC	IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
General Data
Operating Temperature Range (℃)	-45~60, >45 Derating
Cooling	Smart Cooling
Noise (dB)	≤45
Communication with BMS	CAN, RS485
Weight (kg)	38	40	42	44	44	45
Dimensions (mm)	550W ×730H ×290D
Protection Degree	IP65
Installation Style	Wall-mounted

Application Cases

We have served thousands of customers and have rich service experience.

5-14kW Plug-and-play Three Phase Low Voltage Hybrid InverterG2-13

South Africa Installation Case

12kW Solar Energy Storage System in South Africa

5-14kW Plug-and-play Three Phase Low Voltage Hybrid InverterG2-14

Lebanon Installation Case

12kW Solar Energy Storage System in Lebanon

FAQ

Q: Is your hybrid inverter suitable for most batteries on the market? Has it been tested?

A: Yes, ZDX inverter is compatible with a wide range of batteries available on the market. We have conducted extensive testing to ensure its compatibility and performance. We have a list of all the suitable batteries, please refer to our documentation.

Q: Are you a factory or a trading company?

A: ZDX is a factory close to Shanghai port, which is very convenient for loading and shipping, and saves a lot of transportation cost. We have a R&D and engineering team of more than 30 people for energy storage systems and solar inverter technology. Now we have over 3GWh of Li-FePO4 battery packs and 100000 inverters capacity.

Q: What's the payment term?

A: ZDX supports a variety of payment methods, such as T/T, L/C, paypal, alipay and others. If we enter into strategic cooperation, we can communicate with you about payment methods such as DP.

Q: What is your sample policy?

A: ZDX welcomes you to test our quality by sample. Samples will be prepared and sent out within 7 working days after the specification is confirmed
